• Material: Metal
• Brand: Milescraft
• Product Dimensions: 6"L x 6"W
• Finish Type: Black
• Mounting Type: Door Mount
• Unit Count: 1.0 Count
• Global Trade Identification Number: 00737888121304
• Manufacturer: Milescraft Inc.
• UPC: 737888121304

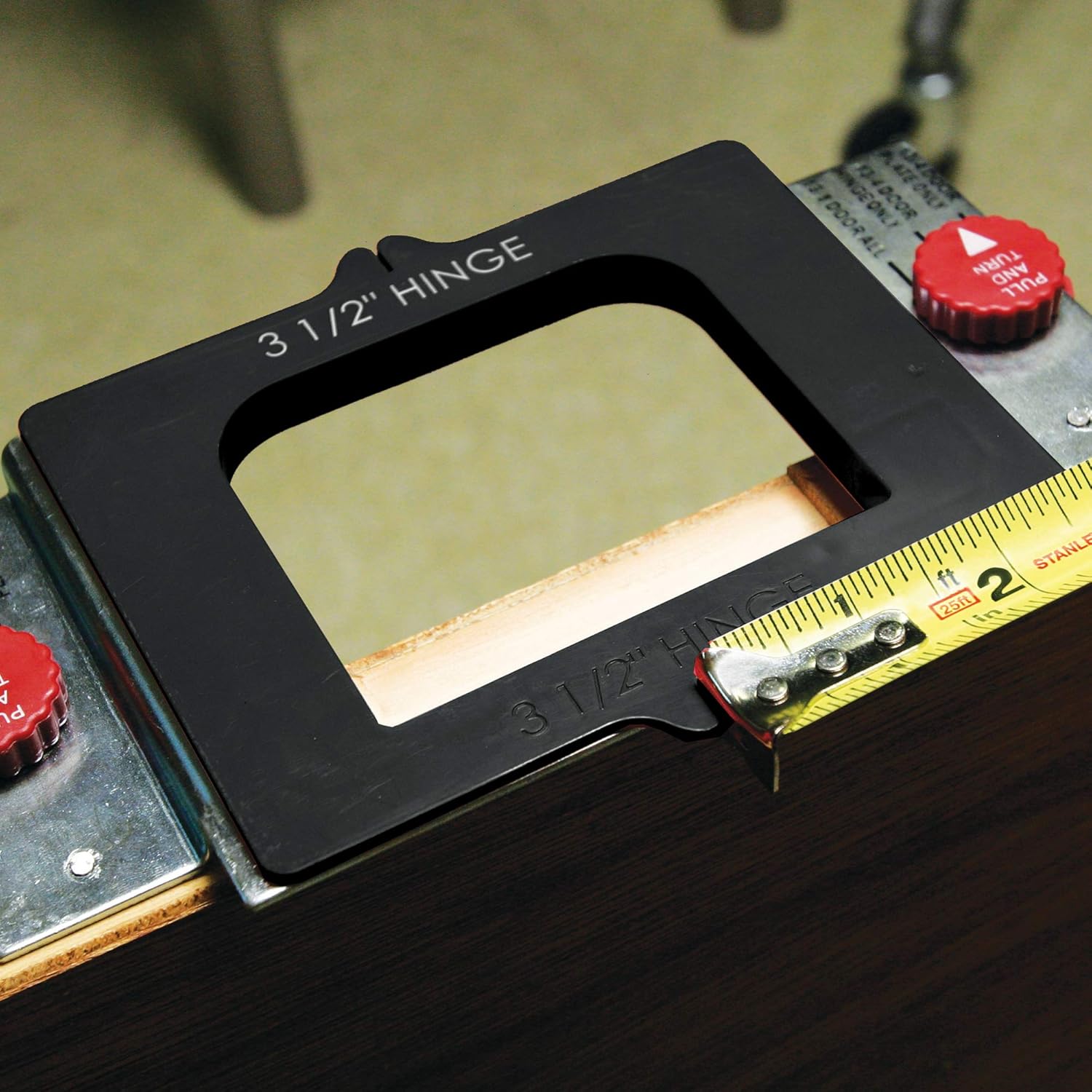

• Install hinges from 2.5in. to 4.5in.
• Adjustable cams automatically align templates for 1-3/8 in. or 1.75 in. doors
• Sturdy steel frame can be used on the door and the jamb, with or without the stop installed.

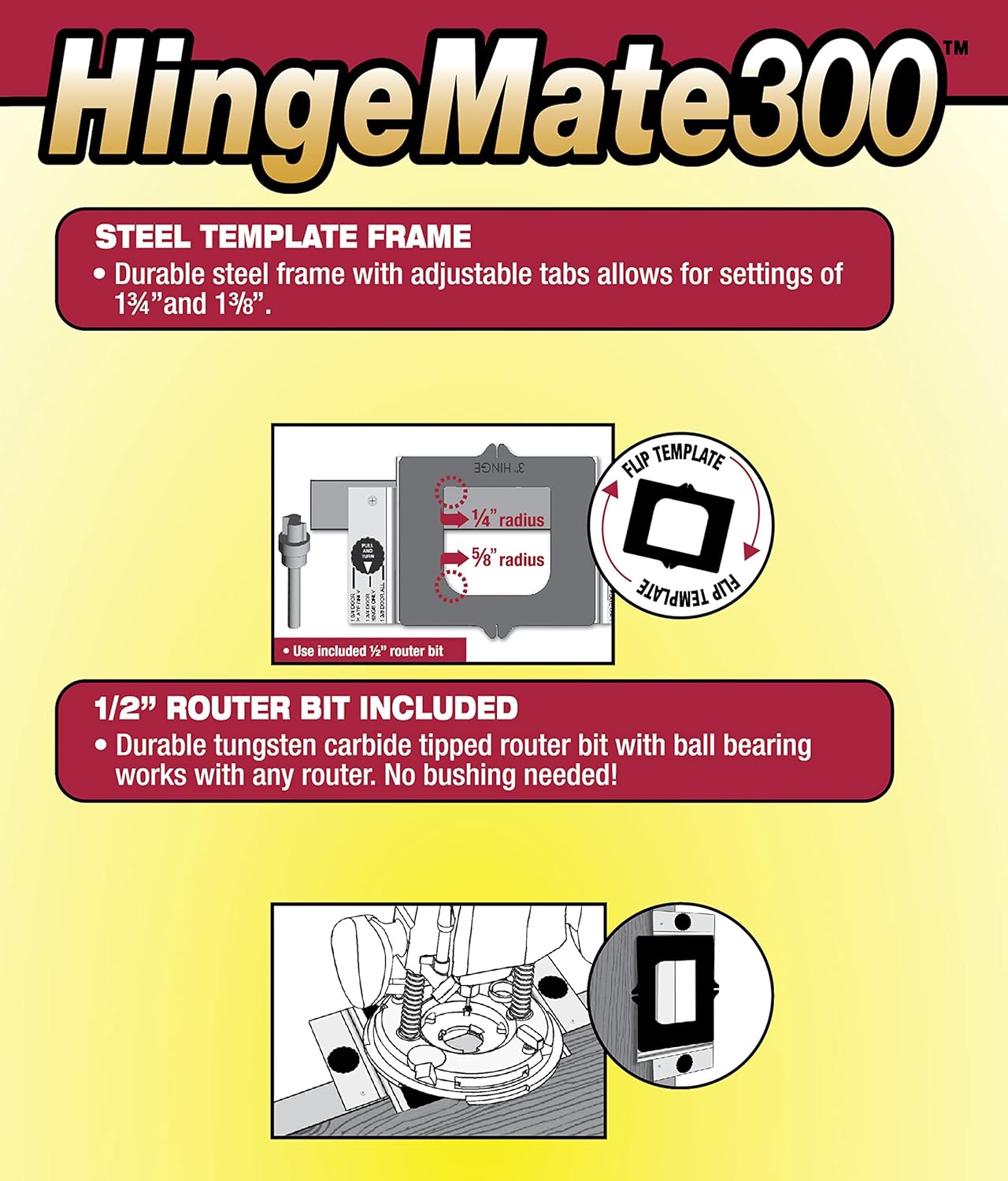

• Durable tungsten carbide 1/2 in. router bit cuts clean, level mortises

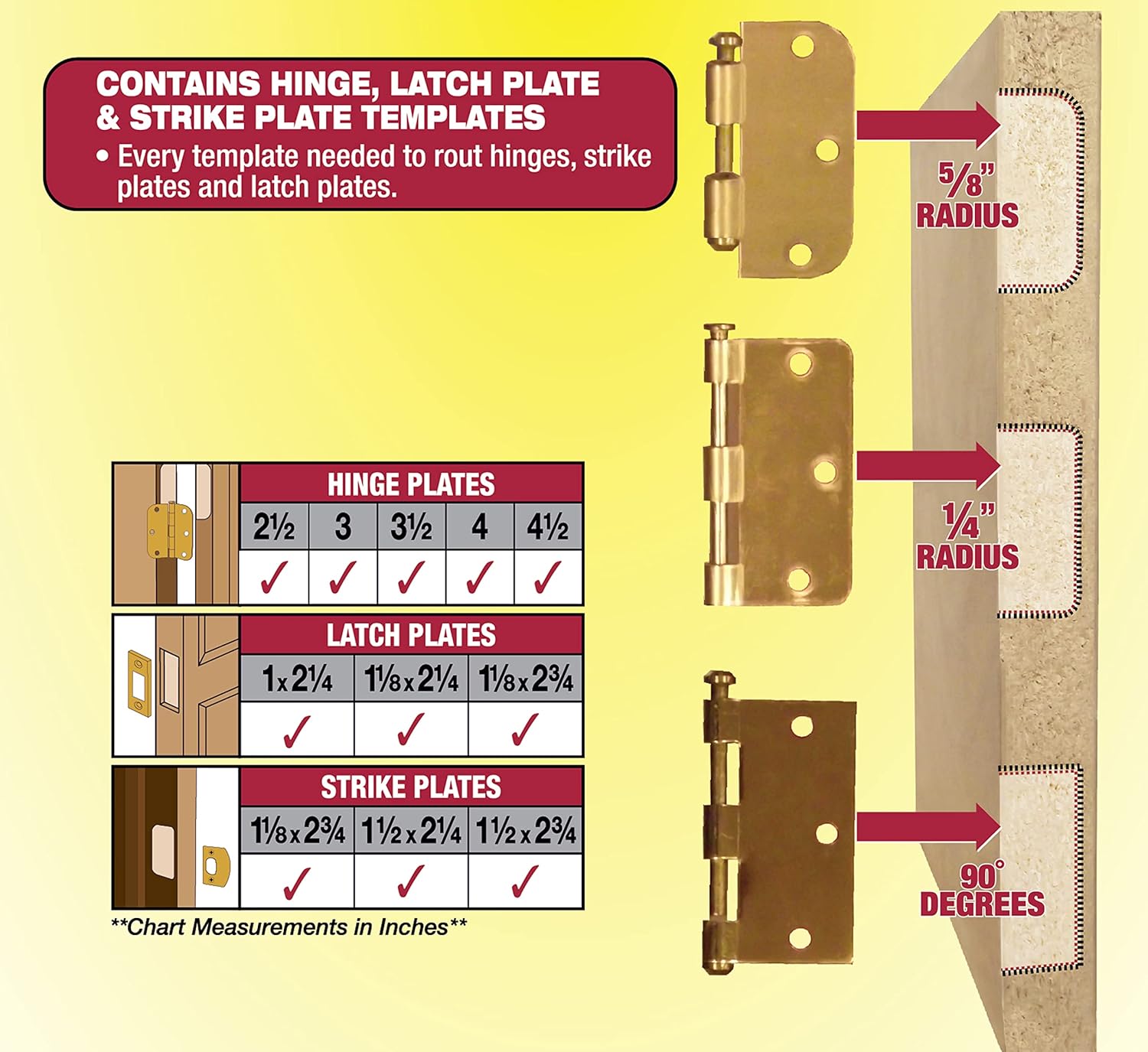

• Dual-position templates rotate template to achieve 5/8 in. or 1/2 in. radius mortises

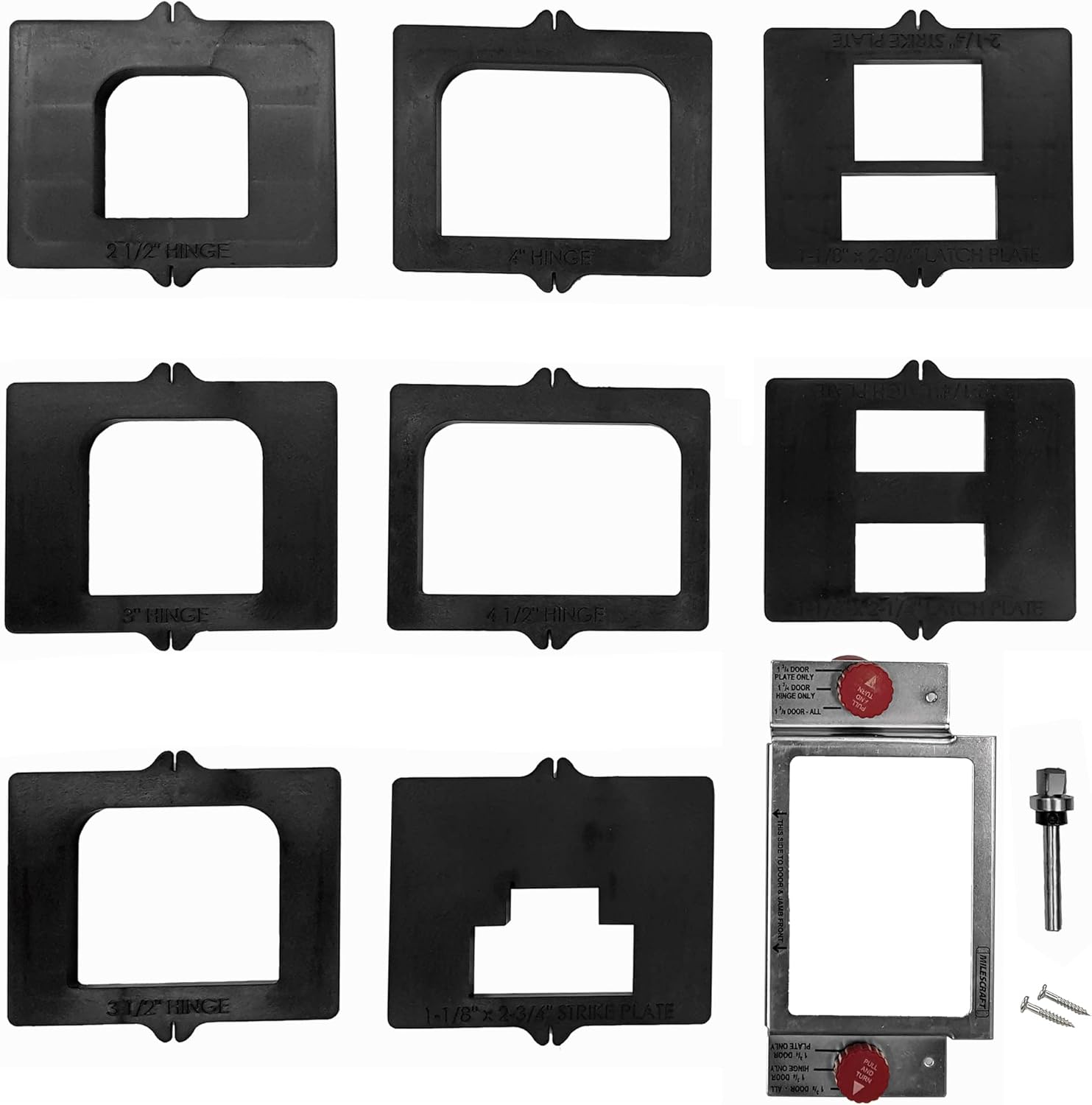

• Easy to use drop in template design with clearly marked templates
• Sturdy steel template frame with door thickness selector knob for 1-3/4 and 1-3/8-Inch doors

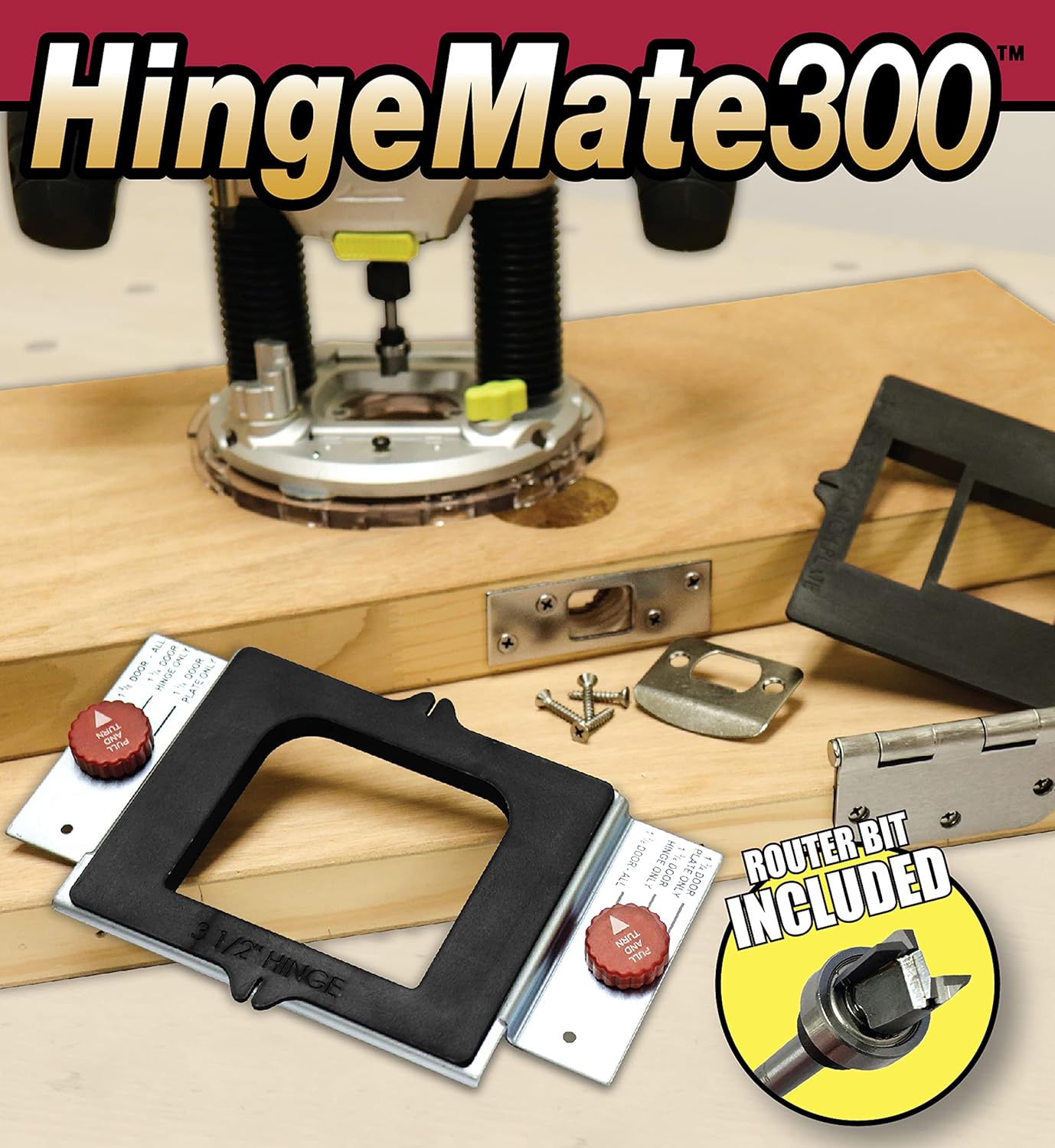

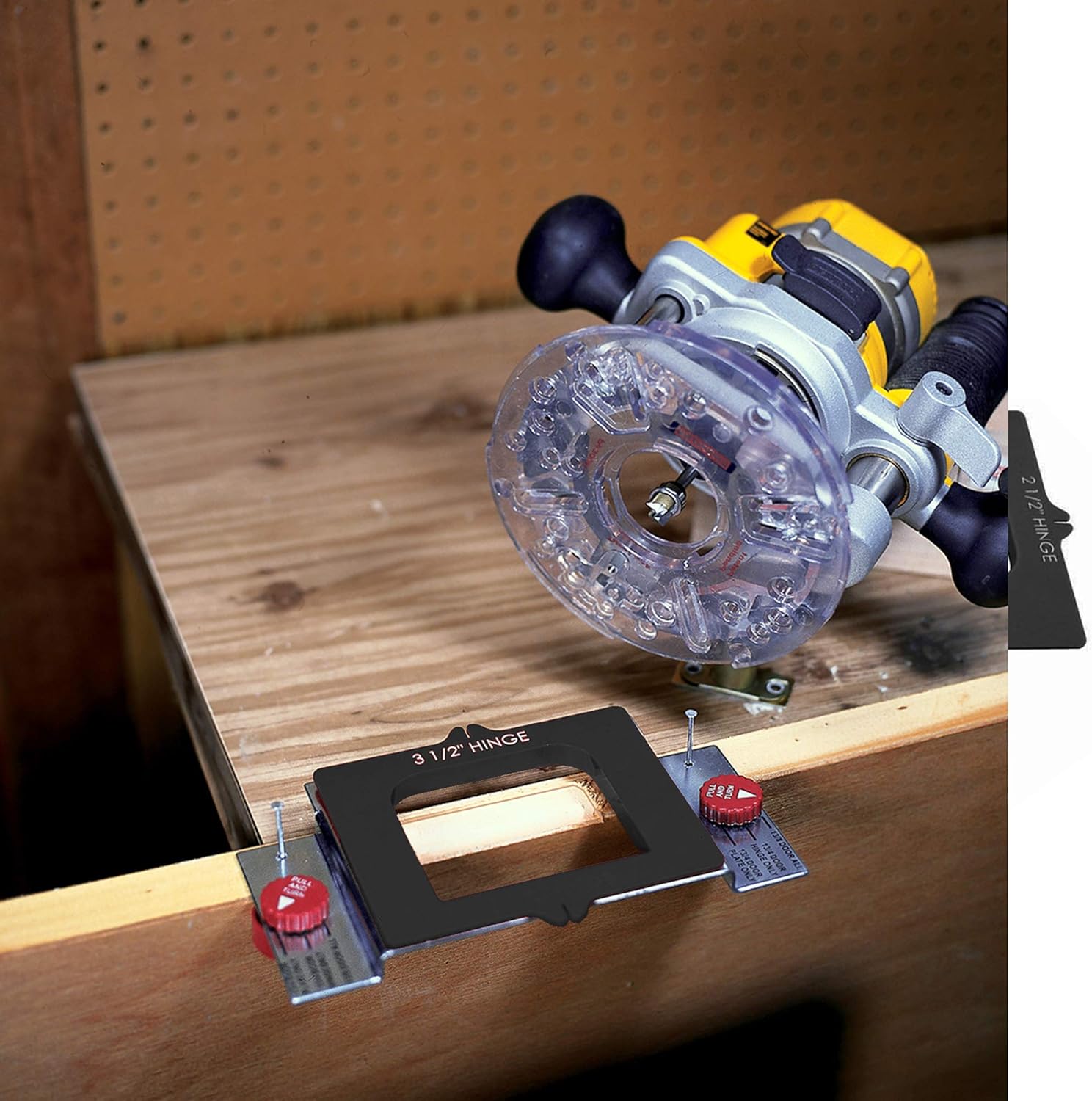

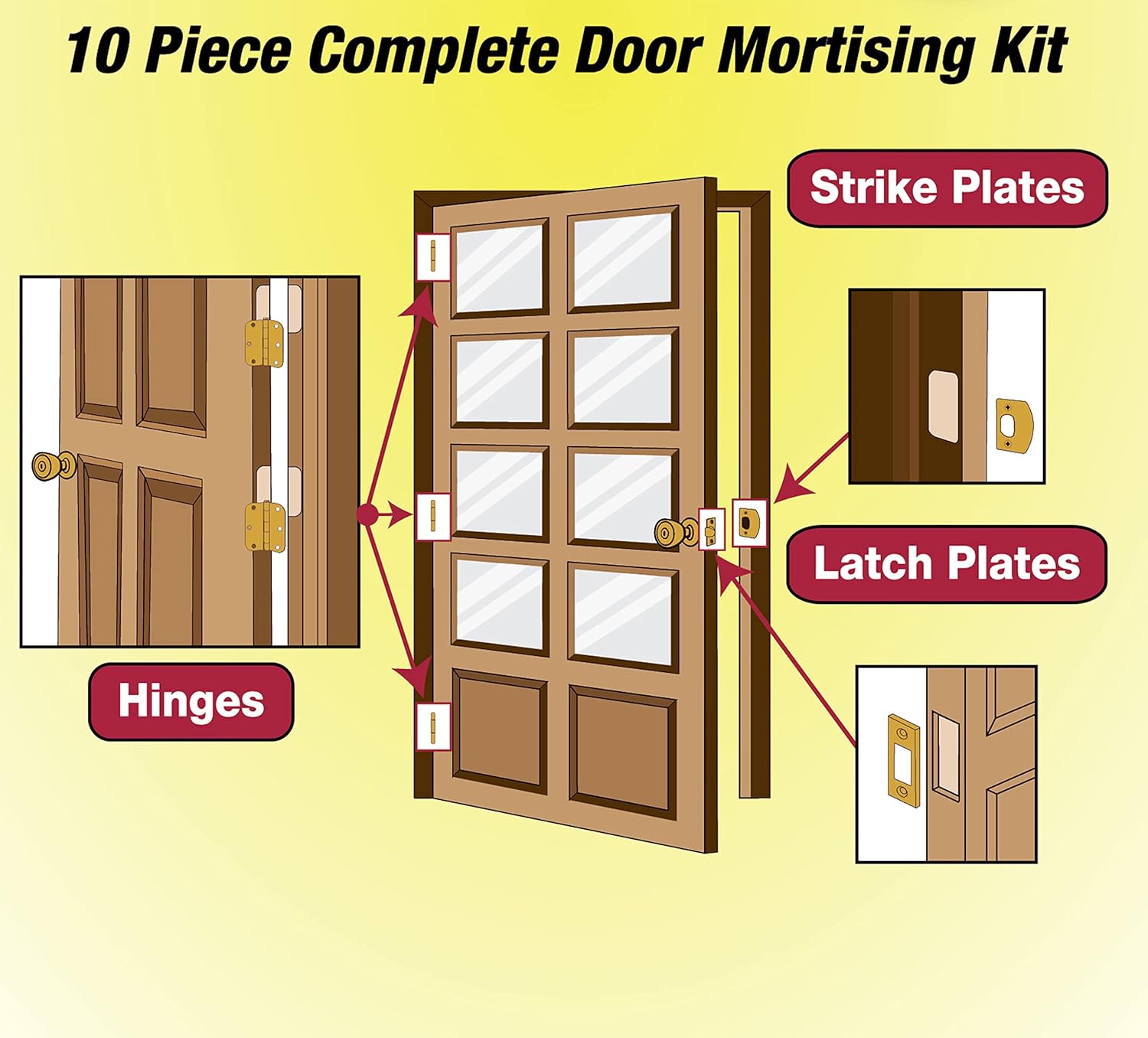

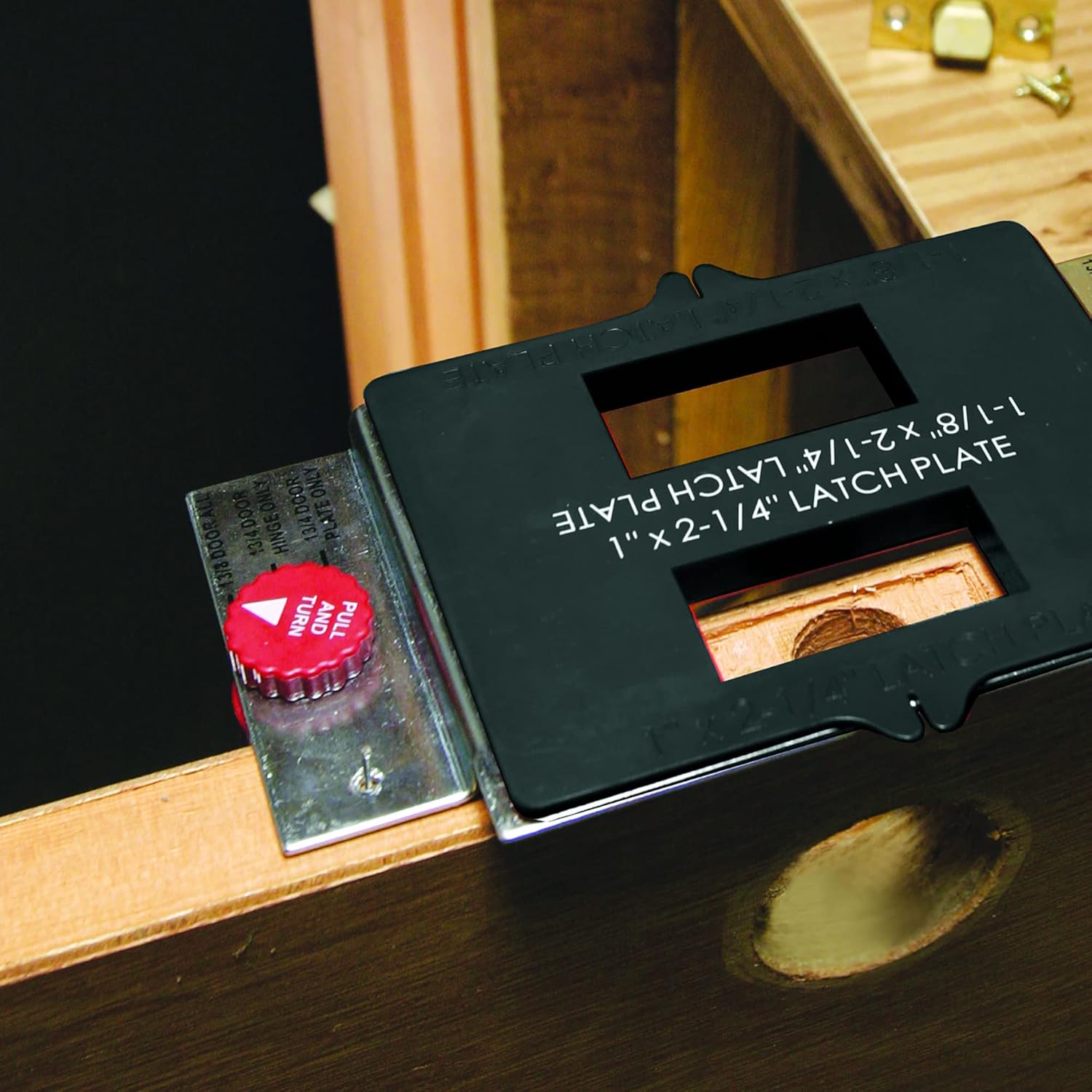

Hang doors like a professional with the HingeMate300™. Whether you are installing new doors, or replacing or repairing existing doors, this kit comes with all the templates required to route doors and jambs for hinge, strike, and latch plates. Compatible with 1-3/8 in. and 1-3/4 in. doors, and hinges that are 2.5 in., 3 in., 3.5 in., 4 in., and 4.5 in. This kit, is perfect for home improvement projects. With the included 1/2 in. router bit, your router will travel along the edge of the template, creating beautiful hinge mortises. A durable, steel template frame automatically aligns and removes the guess work to get the job done quickly and accurately. The included mounting hardware secures the jig to eliminate rocking or movement when you are routing. This kit will provide you beautiful 5/8 in. or 1/4 in. radii hinges. If you are in need of 90° corners for your hinges, simply chisel the remaining material out.
