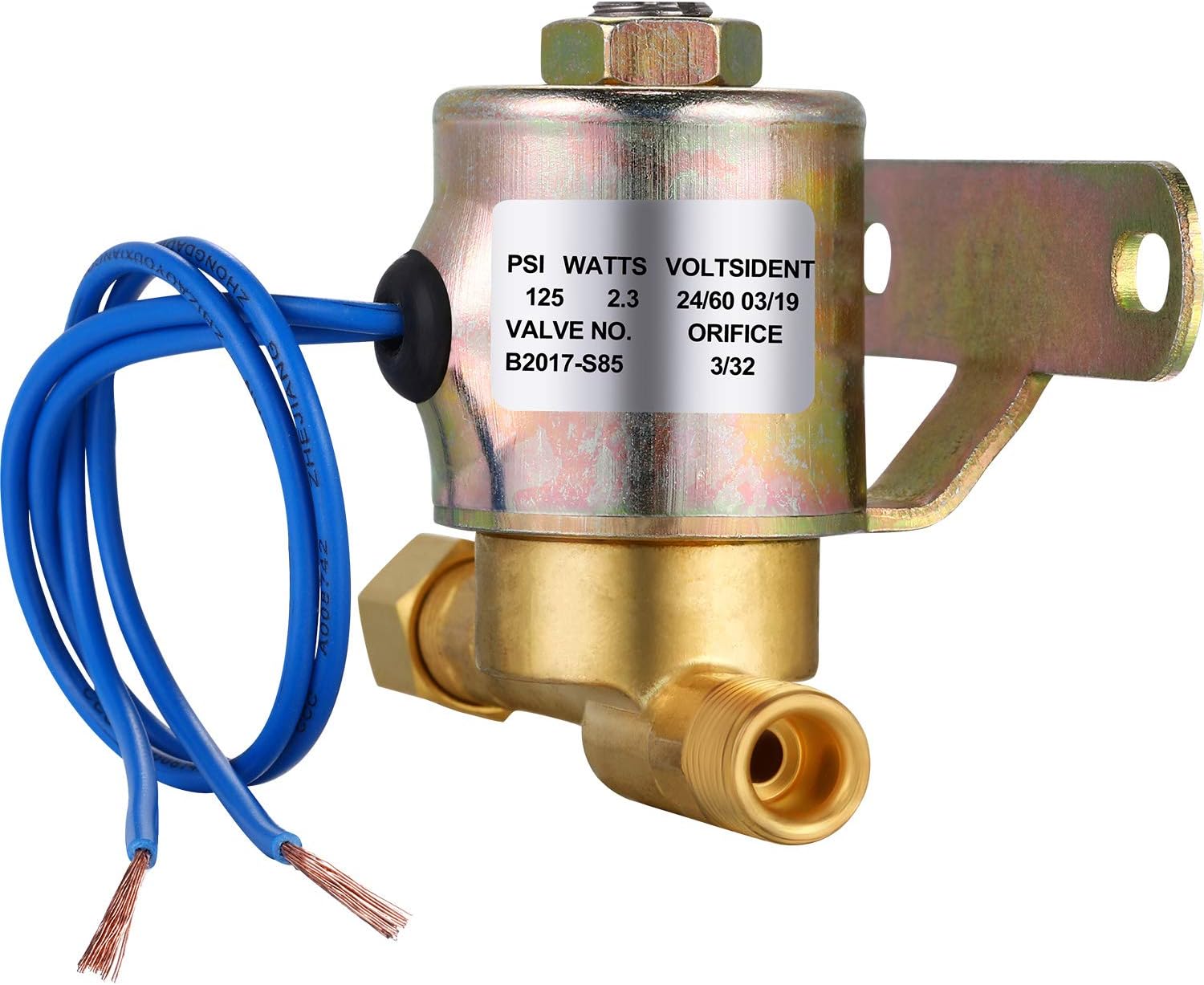

Compatible Solenoid Valve for Aprilaire Humidifiers 220, 224, 400, 440, 500, 550, 558, 560, 600, 700 - 24V, 2.3W, 60Hz - Mudder B2015-S85, B2017-S85, 4040

• Material: Brass
• Brand: Mudder
• Exterior Finish: Brass
• Inlet Connection Type: Compression
• Maximum Operating Pressure: 125 Pound per Square Inch
• Number of Ports: 2
• Valve Type: Globe Valve
• Manufacturer: Mudder

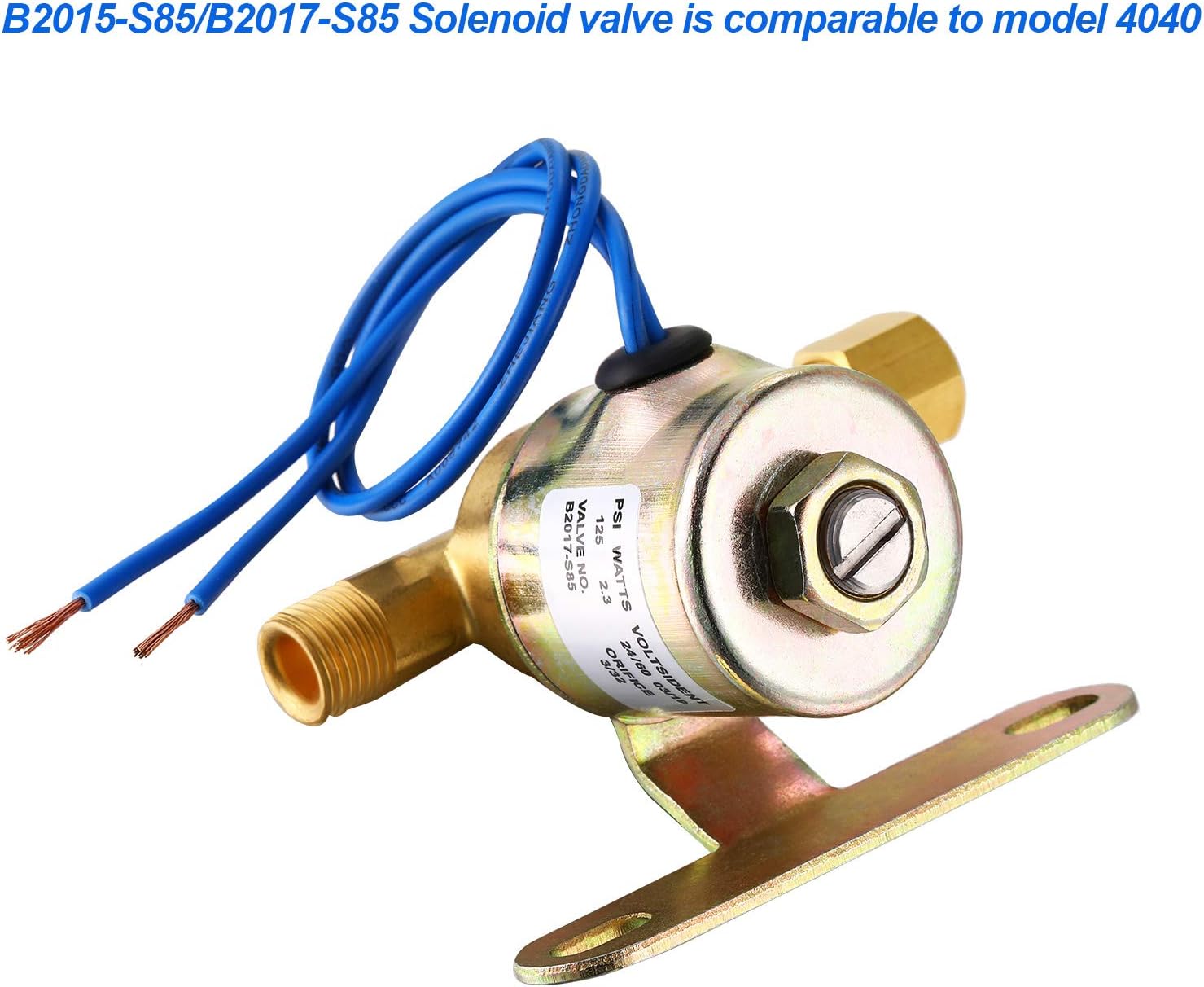

• Application model: the B2015-S85/ B2017-S85 solenoid valve is comparable to model 4040, compatible with Aprilaire models 220, 224, 400, 400A, 400M, 440, 500, 500A, 500M, 550, 550A, 558, 560, 560A, 600, 600A, 600M, 700, 700A, 700M, 760 and 768, doesn't work on models 330, 445, 110, 112, 350 and 360
• Function introduction: the humidifier solenoid valve controls how much moisture enters the humidifier, enabling it to maintain proper humidity levels throughout your home
• Humidifier valve features: applicable voltage is 24 volts, the power is 2.3 watts, frequency is 14 Hz, PSI is 125, 3/32 inch and 1/4 inch orifice threaded compression ends on both sides, inlet and outlet ports are reversible to fit a wider variety of humidifiers
• Easy to install: the installation of the solenoid valve is very simple, it can be done with a screwdriver and a wrench, and it can be installed in just a few minutes, please note that our products do not include the installation tool
• Durable material: the humidifier valve is made of durable brass material and copper wires, which is enough solid and durable, can be applied for a long time; Note: please check the relevant size information carefully before purchasing

Note: The brand we mentioned is only to illustrate the suitability of the product, not as a trademark. Wide application: The solenoid valve is compatible with Aprilaire models, such as 220, 224, 400, 400A, 400M, 440, 500, 500A, 500M, 550, 550A, 558, 560, 560A, 600, 600A, 600M, 700, 700A, 700M, 760 and 768, doesn't work on models 330, 445, 110, 112, 350 and 360. Installation steps: Firstly, disconnect the humidifier and shut off the water supply to the unit. Secondly, remove the solenoid. Unclip the wires from the solenoid. Using the adjustable wrench to unscrew the compression nut and then remove the distributor and tube. Let remaining water drain into the plastic container. Disconnect the water supply. Use a screwdriver to unscrew the screws and discard the old. Thirdly, install the solenoid. Align the new solenoid and then tighten the screws. Connect the water supply line. Replace the distributor tube and tighten the compression nut. Finally, connect the wires to the solenoid and reconnect the humidifier. Specification: Model No.: B2015-S85/ B2017-S85 Watts: 2.3 watts PSI: 125 Volt: 24 V Orifice: 3/32 inch, 1/4 inch Material: brass and copper wire Package includes: 1 x Humidifier valve
