10 Amp 2 Pole DC Miniature Circuit Breaker for Solar PV System and RV - Thermal Magnetic Trip, DIN Rail Mount - Chtaixi DC Disconnect Switch B10
10 Amp 2 Pole DC Miniature Circuit Breaker for Solar PV System and RV - Thermal Magnetic Trip, DIN Rail Mount - Chtaixi DC Disconnect Switch B10
breakers, chtaixi, circuit breakers, electrical, load centers & fuses, miniature circuit breakers, tools & home improvement
Regular price
$100.29 AUD
Regular price
Sale price
$100.29 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Brand: CHTAIXI
- Current Rating: 10 Amps
- Circuit Breaker Type: Standard
- Mounting Type: DIN Rail Mount
- Number Of Poles: 2

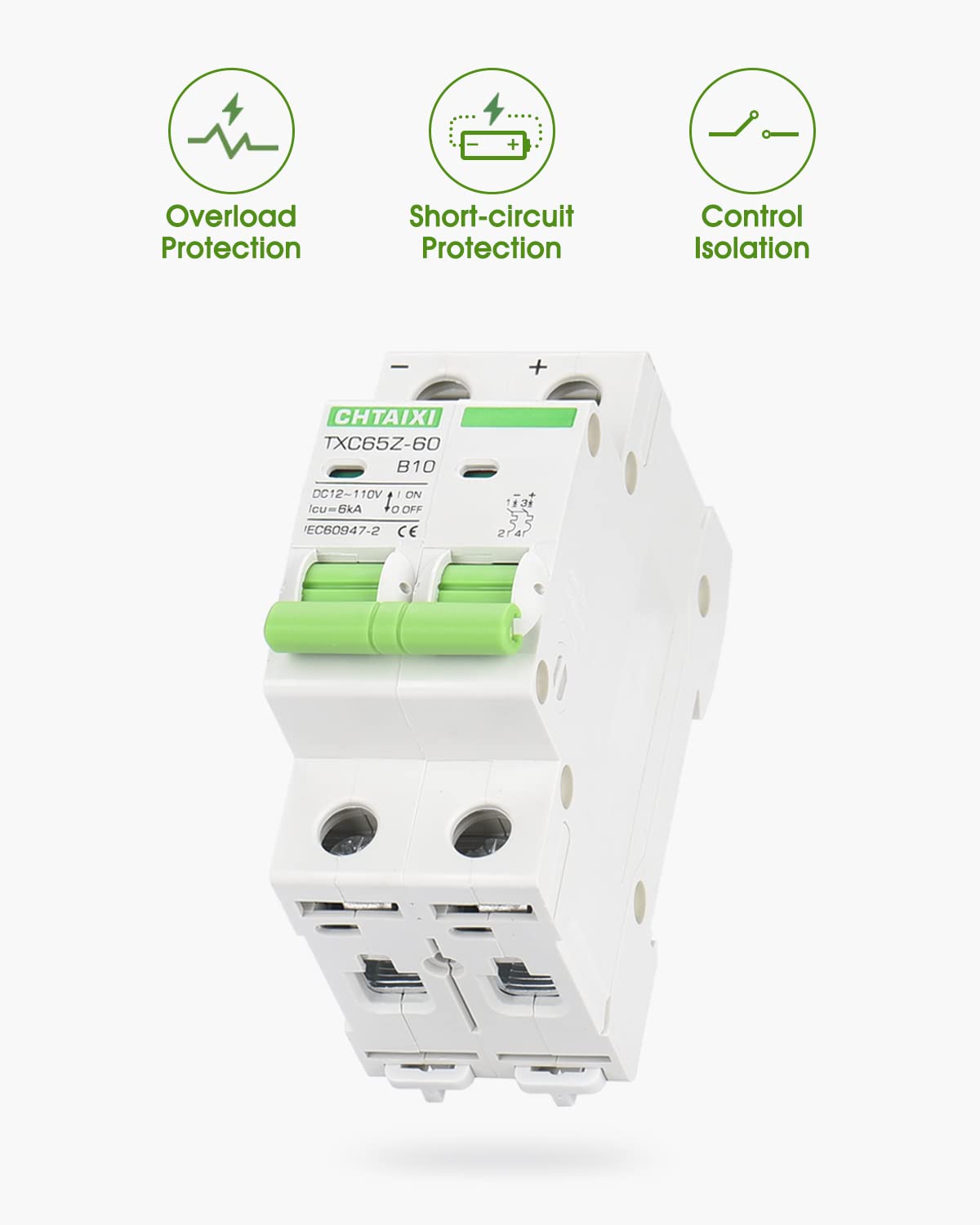

- FUNCTIONS: Used to protect 12V 24V 36V 48V 60V 100V DC circuit from overload and short circuit damage, and can also be used for control and isolation.
- FAST TRIP: The electromagnetic trip system can trip immediately when short-circuited.

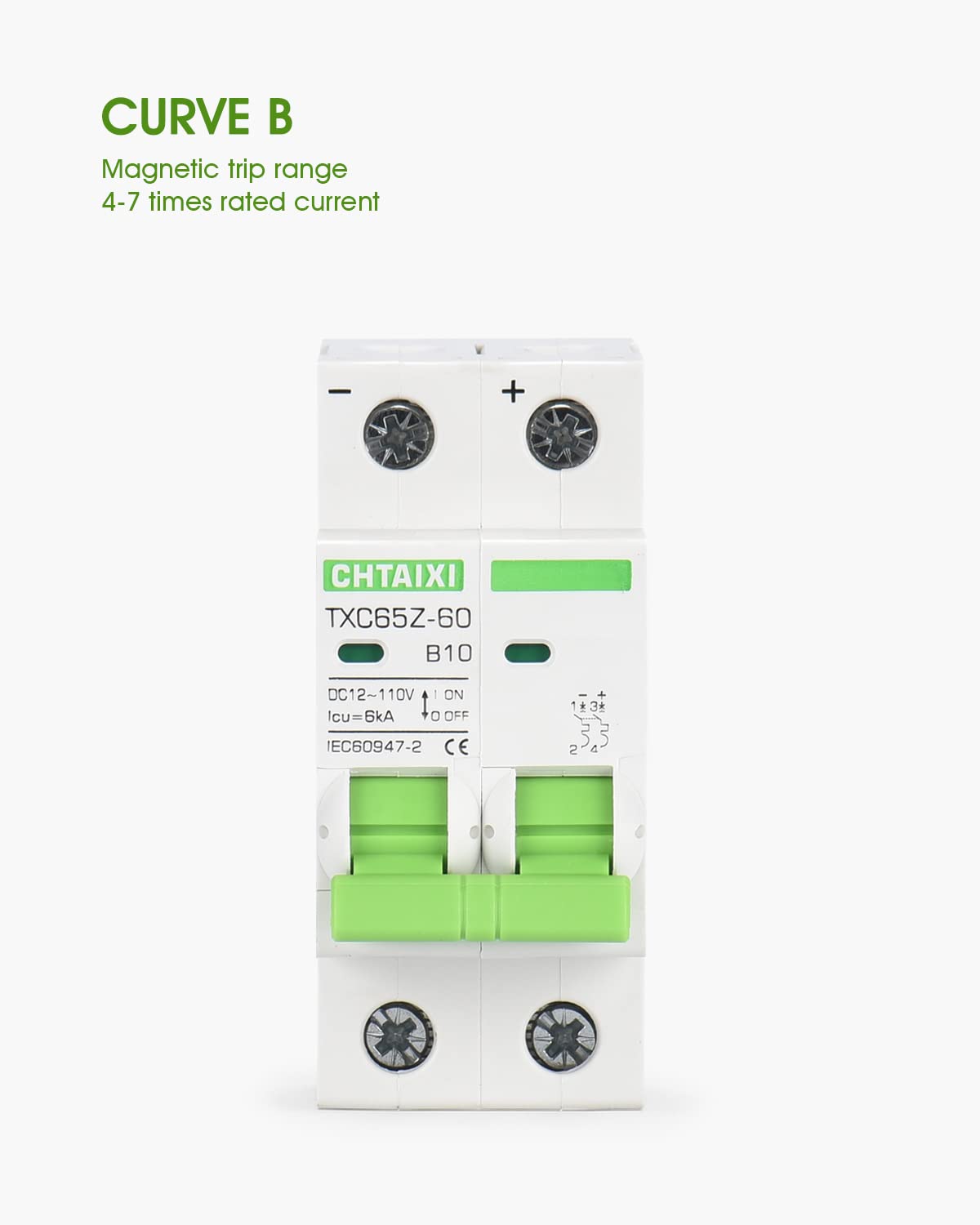

- CURVE B: Magnetic trip range 4-7 times rated current.
- APPLICATION: Used in battery power systems, solar photovoltaic systems, RV, electric moped, or other DC systems.

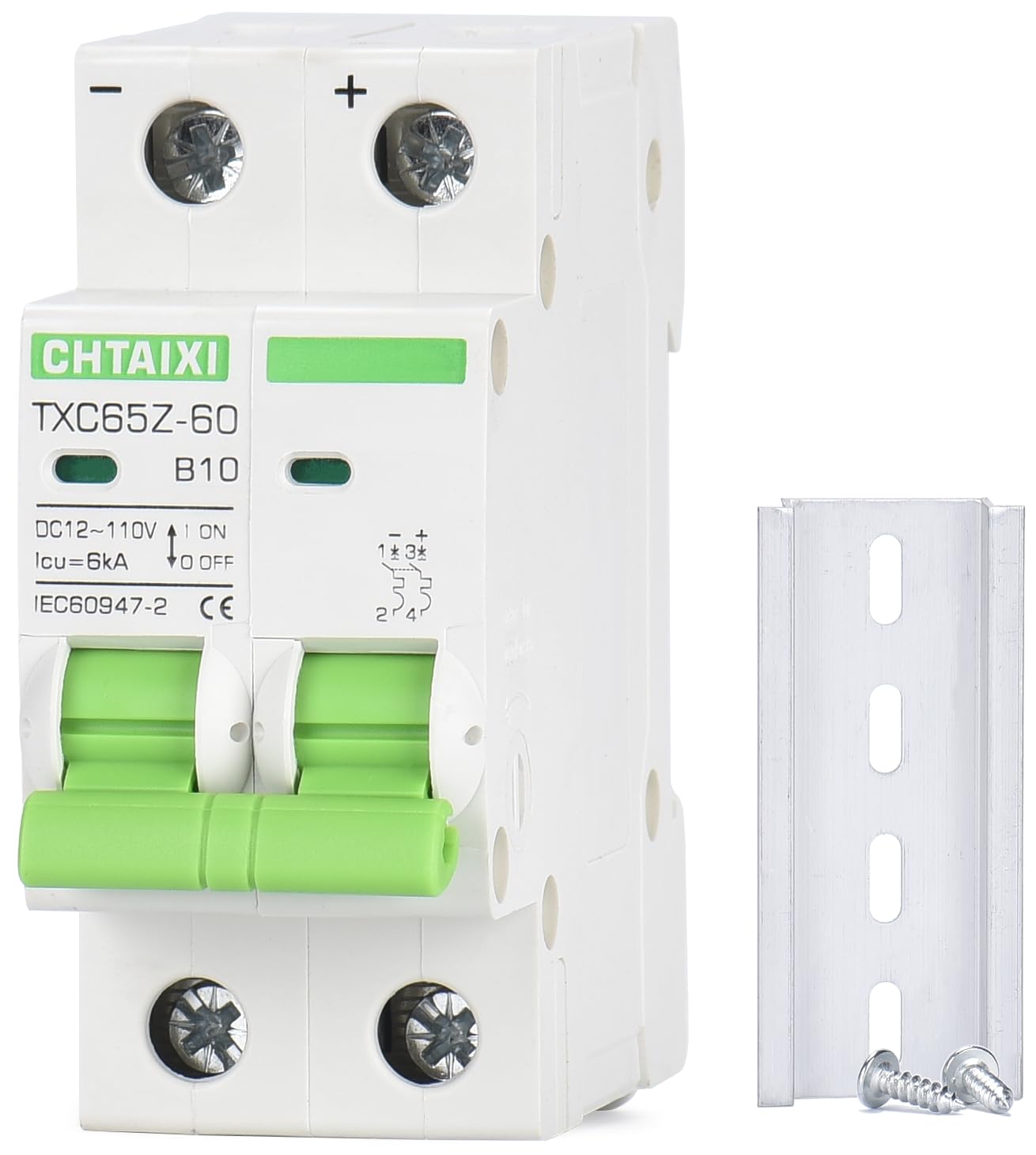

- INSTALLATION: Screw clamps wire or M5 wire lug (size fits), 35 mm DIN rail mount.
- Is Discontinued By Manufacturer : No

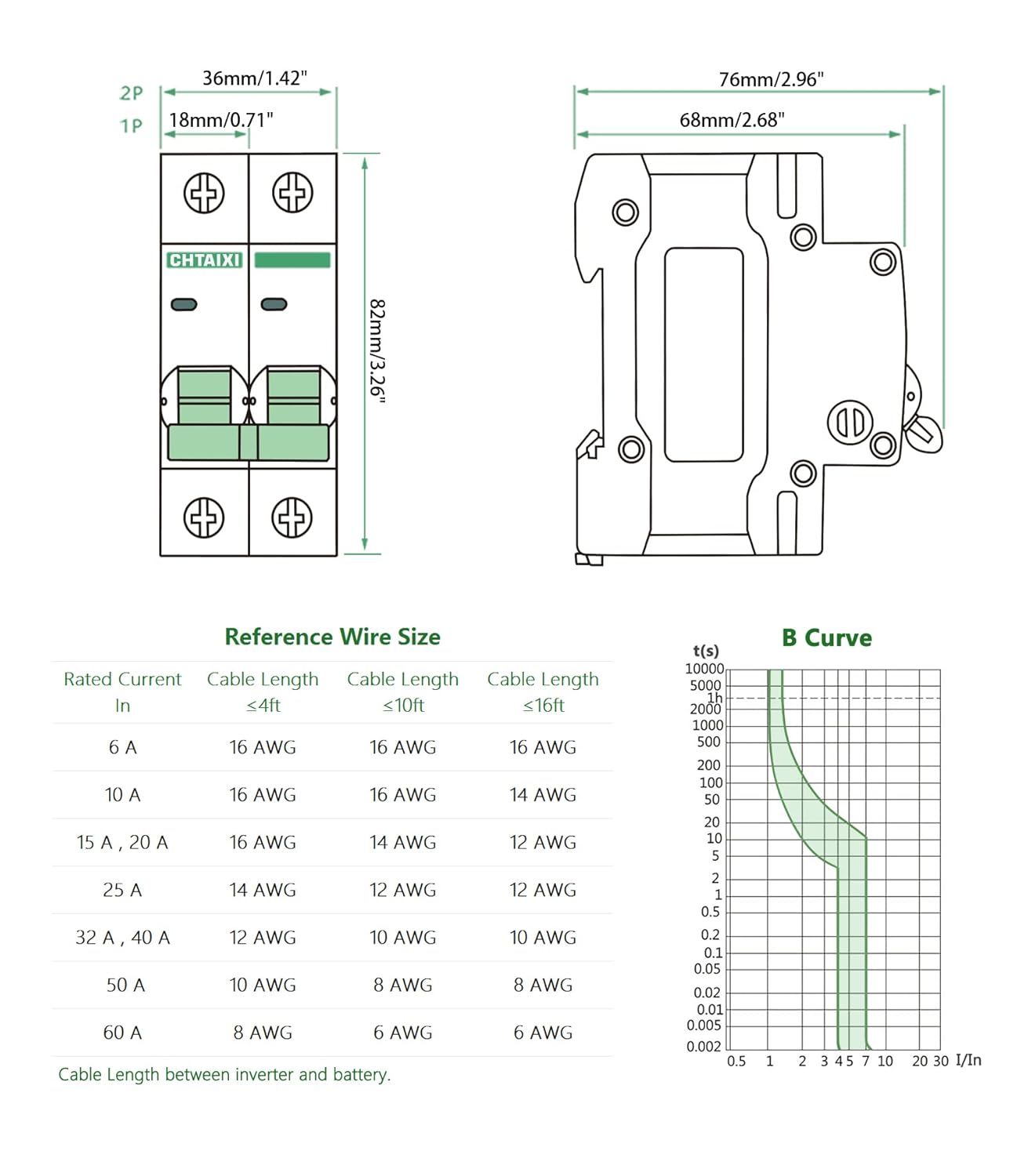

- Product Dimensions : 2.96 x 1.41 x 3.26 inches; 6.88 ounces
- Item model number : TXC65Z-60
- Manufacturer : CHTAIXI
| Brand | CHTAIXI |
| Current Rating | 10 Amps |
| Circuit Breaker Type | Standard |
| Mounting Type | DIN Rail Mount |
| Number Of Poles | 2 |
